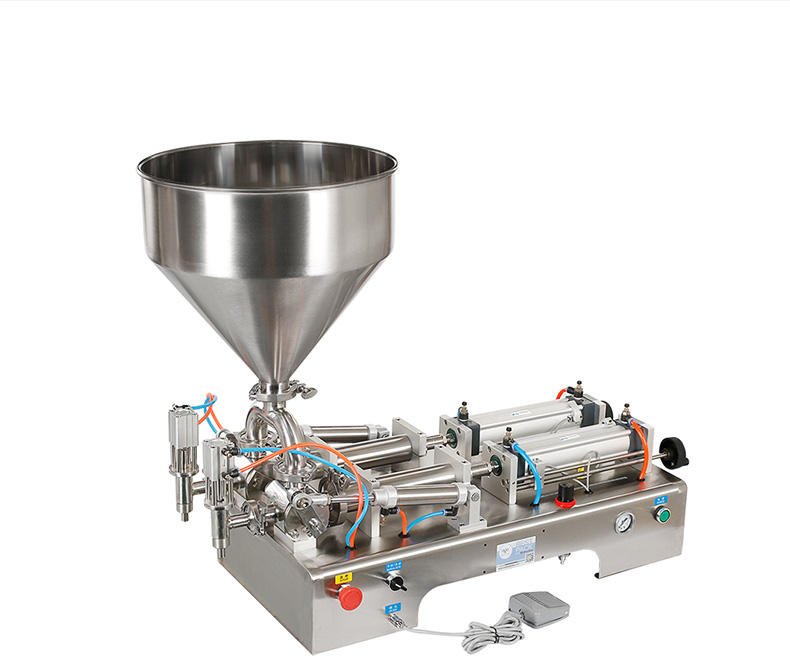

Double the Output: Why the Double-Nozzle Paste Filling Machine is the Ultimate Packaging Upgrade
When growing a business in cosmetics, food production, pharmaceuticals, or chemical packaging, bottle necking during the filling stage can hold your entire operations back. While single-head fillers are great for starting out, stepping up to a Semi-Automatic Double-Nozzle Paste Filling Machine is one of the most cost-effective ways to double your production capacity without expanding your floor space.
Why Choose a Double-Nozzle Paste Filler?
Designed to dispense two containers simultaneously, this machine is engineered for high efficiency, operational versatility, and clean, high-precision dosing of thick, viscous materials.
1. Dual Pneumatic Power & Independent Control
Driven by air pressure (requiring a standard 0.4 – 0.6 MPa air compressor), the twin pneumatic cylinders ensure smooth, heavy-duty piston movement. Each filling head features its own adjustable volume stroke, allowing you to fine-tune both nozzles for identical volume distribution across both channels.
2. High-Efficiency Output
By filling two bottles or jars at once, your line speed increases dramatically—achieving between 20 to 60 containers per minute, depending on operator speed and product viscosity.
3. Precision Dosing with Zero Waste

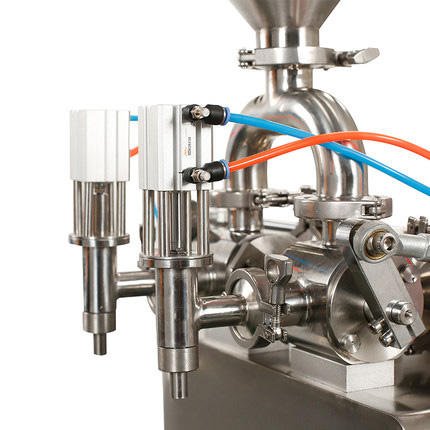

With an accuracy rating of ≤ ±1%, the dual rotary valve system and anti-drip nozzles ensure clean cuts on sticky or heavy pastes—preventing messy spills, overfills, and wasted ingredients.
4. Hygienic Stainless Steel Construction
Constructed with food-grade Stainless Steel (SUS304 / SUS316 contact parts), the filler meets strict health and safety compliance standards. It handles corrosive, acidic, or oily products with ease and is simple to wash down between product runs.
Technical Specifications at a Glance
-
Filling Type: Dual-head pneumatic paste & liquid filling (simultaneous fill)
-
Operating Modes: Semi-automatic (foot pedal control) OR automatic continuous cycling mode
-
Hopper Capacity: ~30 to 50 Liters large stainless steel loading funnel
-
Filling Range: Available in common ranges (e.g., 5–50 ml, 10–100 ml, 50–500 ml, 100–1000 ml per head)
-
Air Pressure Requirement: 0.4 – 0.6 MPa
-
Filling Speed: 20 to 60 bottles/minute
-
Key Features: Twin anti-drip nozzles, dual rotary valve system, volume scale adjusters, and emergency stop button.
What Can You Fill?
This machine handles a broad spectrum of high-viscosity products:
-
Food & Sauces: Chili pastes, honey, mustard, peanut butter, fruit jams, ketchup, and chocolate spreads.
-
Cosmetics & Skincare: Creams, heavy lotions, face masks, body balms, and hair gels.
-
Chemicals & Oils: Lubricants, adhesives, ointments, detergents, and industrial pastes.
How It Solves Bottlenecks on Your Line
-
Maximized Labor Efficiency: A single operator can manage two filling nozzles simultaneously, effectively doubling throughput per labor hour.
-
Flexible Workflow: Toggle easily between pedal-switch mode for precision batch packing and continuous automatic mode for rapid filling.
-
Low Maintenance Setup: Quick-release connections allow for quick disassembly and sanitization, reducing downtime between different product runs.
Ready to Scale Your Production?
If your single-nozzle machine can no longer keep up with incoming demand, moving to a dual-nozzle paste filler gives you the speed, precision, and reliability needed to take your packaging operations to the next level.
